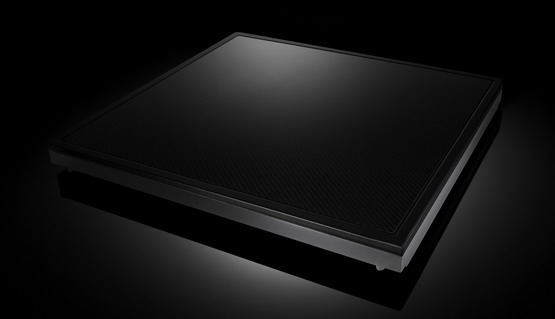

LTX-1717 Digital Flat Panel X-Ray Detector

LTX-1717 Digital Flat Panel X-Ray Detector | Kodex Inc.

Introducing the latest TFT technology in a portable flat panel x-ray detector specifically designed for high resolution digital x-ray imaging. Featuring a large 17.3 x 17.3 inch image area in a slim light weight design. Ideal for easily converting from conventional x-ray film to digital radiography with images produced in less than five seconds. The LTX-1717 is compatible with all x-ray sources up to 150kVp, including portable pulsed devices. Conversion to digital can be accomplished in minutes. Computer and imaging software included.

LTX-1717 Digital Flat Panel X-Ray Detector Scale | Kodex Inc.

LTX-1717 Applications:



• Zoological Studies

• Sedimentology

• Ichthyology

• Conservation

• EOD Bomb Disposal

• Security

• Research

• Quality Control



Complete on-site installation and training available.

General Characteristics

Pixel Area:

3072 x 3072



Scintillator:

Cesium Iodide



Resolution:

147 microns



Panel Surface:

Carbon Fiber



Interface:

Ethernet



Dimensions:

19.6" x 19.5" x 1.75"



Power:

110/220VAC

Weight:

26 LBS



Computer:

Pentium Core Duo Computer



Monitor:

20" High Resolution LCD



Software:

Image Acquisition/Viewing Software
