Golden Engineering XR150 X-Ray Source | Kodex Inc.

GOLDEN ENGINEERING

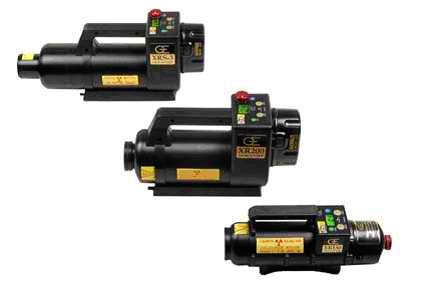

XR150 X-RAY SOURCE

Introduced in 1994, the XR150 is the lightest self-contained X-ray source in the world at just five pounds with battery attached.

XRS-3 SPECIFICATIONS
XR150 Size:  XR150 Radiation Leakage:
4.12" (104mm) high x 3.12" (80mm) wide x 10.75" (273mm) long 0.15 mR for 100 counts measured 1 foot to the side of the unit
XR150 Weight:  XR150 Exposure Control:
4lbs 6 oz (2.0kg) with battery LCD can be set for 3-297 pulses
XR150 DC Mode:  XR150 Source Size:
7.2V removable, rechargeable nickel cadmium battery, 2500 pulses per charge 2.2 mm nominal
XR150 Battery Recharge Time:  XR150 Time Delay:
1 hour recharge with supplied external battery charger Push button triggering of 15 or 60 seconds delay-allowing time to leave area before unit fires
XR150 Pulse Rate:  XR150 Output Dose:
10 pulses per second nominal 1 mR @ 1'/pulse w/filtration equivalent of 2.5mm of aluminum
XR150 Pulse Length:  XR150 Maximum photon energy:
60 nanoseconds 150 kV
XR150 Maximum Pulses:  XR150 Warranty:
3,600 per hour Unit warranty-1 year limited
